Building insulation materials 3: Mineral

Rock mineral wool insulation
Glass mineral wool insulation
Cellular or foamed glass insulation
Aerogel insulation

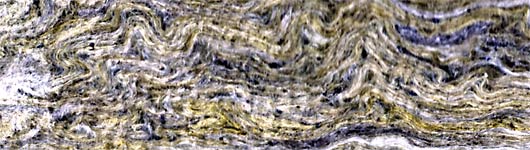

Rock mineral wool insulation


Rock mineral wool is made from quarried diabase rock and recycled steel slag. The insulation is produced in a variety of densities according to format and function. Varying densities result in varying levels of thermal conductivity. Applications include masonry cavity walls, timber frame walls, roof rafter insulation, loft and suspended floor insulation.

Pro

Can include around 23% of secondary industrial waste (4)

Pro

Theoretically reusable if in suitable condition

Pro

Theoretically recyclable

Pro

Inherently non-combustible and resistant to rot

Pro

A brand of formaldehyde-free rock wool is apparently available in China, but not yet seen in the UK.

Con

Quarrying of material can result in land-degradation

Con

Production emissions include carbon monoxide, formaldehyde and phenol. The release of these emissions is reduced through use of an afterburner (4). UK emissions are within legally defined limits

Con

Only formaldehyde-bound brands available in the UK.

Con

Though mineral wool is no longer classified as a skin irritant, exposure can cause temporary irritation

Con

Thermal conductivity can be increased by either compaction or wetting (5)

Con

High embodied energy

Embodied energy cradle to gate

Various figures:
- 16.8 MJ/kg (cradle to grave) 10
- 15.7 MJ/kg 11
- 22.4 MJ/kg (Flumroc AG, Switzerland) 2

More: Thermal properties of insulation.....

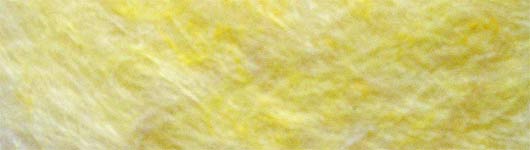

Glass mineral wool insulation


Glass wool insulation is manufactured in a similar way to rock wool, though the raw materials are different as well as the melting process. Glass wool is made from silica sand, recycled glass, limestone and soda ash. The insulation is produced in a variety of densities according to format and function. Varying densities result in varying levels of thermal conductivity. Applications include masonry cavity walls, timber frame walls, roof rafter insulation, loft and suspended floor insulation.

Pro

Typically includes 30 – 60% of post consumer waste glass (cullet) (4)

Pro

A formaldehyde-free binder brand is available in the UK

Pro

Reusable if in a suitable condition, but there are no current 'take back' schemes

Pro

Theoretically recyclable

Pro

Relatively low-density of material in use reduces overall environmental impact

Pro

Inherently non-combustible and resistant to rot

Con

Quarrying of raw materials can cause landscape degradation

Con

Emissions associated with the manufacture of glass wool - mostly in energy generation. UK emissions are within legally defined limits

Con

High embodied energy

Con

Can include boron to improve moisture tolerance (4)

Con

Thermal conductivity can be increased by either compaction or wetting (5)

Embodied energy cradle to gate

Various figures: example of 49.6 MJ/kg (for glass wool mat produced by Isover SA, Switzerland) 2

More: Thermal properties of insulation.....

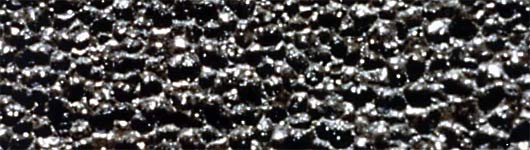

Cellular or foamed glass insulation

Foamed glass insulation is made from crushed glass that is mixed with carbon and heated to 1000ºC. The heat causes the carbon to oxidise to form the characteristic bubbles. Foamed glass has a relatively high compressive strength which, combined with its water and vapour resistance, makes the insulation slab suitable for flat roofing in high-load situations such as retaining walls, car parks and green roofs. Other applications include thermal breaks, wall and floor insulation.

Pro

Contains post-consumer glass waste (cullet) – typically circa, 60%

Pro

Theoretically can be recycled

Pro

Relatively high compressive strength make it appropriate for inclusion in structural environments (e.g. walls, slabs)

Pro

Water and vapour impermeable with glued joints

Pro

Dimensional stability

Pro

Inherently resistance to fire and rot

Pro

Small degree of thermal mass

Con

Quarrying of raw materials can cause landscape degradation

Con

Emissions associated with the manufacturing of glass

Con

Bitumen content complicates disposal (12)

Embodied energy cradle to gate

Various figures: example of 26 MJ/kg (for foam glass produced in Belgium)

More: Thermal properties of insulation.....

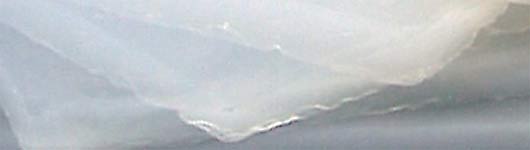

Aerogel insulation


Aerogel is a lightweight, low-density material made from silica and air. Relatively new on the market, aerogel blankets are beginning to appear as a component in laminate panels bonded to boards including plasterboard, wood fibre reinforced gypsum board, plywood, and chipboard. The panels are distinguished by their outstanding insulation properties.

Pro

Relatively high compressive strength

Pro

Water impermeable

Pro

Inherently resistance to fire and rot

Pro

Reusable if in suitable condition

Con

Though used in other industries for a number of years, it is still relatively untested in the construction industry

Con

Quarrying of raw materials can cause landscape degradation

Con

Expensive

Embodied energy cradle to gate

53 MJ/kg 14

More: Thermal properties of insulation.....



Other insulation material types

Plant / animal derived insulation

Oil-derived insulation





References


2 Ecoinvent, 2007 supplied by Dr Andrew Norton, Renuables
4 'Life Cycle Assessments of Natural Fibre Insulation Materials'; Murphy & Norton, 2008
5 'Insulation for Sustainability - A Guide', XCO2 Conisbee, 2003 (an industry-sponsored report)
8 BRE Environmental Profile
11 ETH-ESU, Zurich, Switzerland
12 'The Ecology of Building Materials', Bjorn Berge, 1992 & 2000
13 Proctor Group
14 Aspen Aerogels
